300DX
Devin Systems provides affordable, discharge and
recycling wastewater treatment systems designed and manufactured for
ease of use with a minimum of service requirements. AutoPure ® is Devin
Systems' wash water treatment technology.
FEATURES
The AutoPure ® Model 300DX design
offers the following:
- Oil and grease removal to less than 15 ppm.
- Removal of metals, e.g., iron, copper, lead,
chromium, barium, zinc, etc., through chemical precipitation.
- Storage for the accumulation of sediments
until ready for economical removal and disposal.
- Capacity of about 400 gallons per hour.
- Discharge of effluent.
- No filters to replace or clean.
- No external sump pump is required.
- System is completely automated by using the
latest in computer technology. This results in minimal operator
interaction and the ultimate in reliability.
- System performs self-diagnostic tests and
preventive maintenance checks to alert when and what service is
required.
OVERVIEW
AutoPure ® processes wash water for
discharge or recycling by adding treatment chemicals that convert the
water contaminants into inert sludge. In many oilfield service
applications, this treated sludge is classified as "nonhazardous"
waste. The chemical selection is tailored to the specific
application and is formulated based upon laboratory testing of the dirty
water. The treatment recipe is programmed into the system computer and
can be changed as required for changing water quality.
OPERATION
Dirty water is pumped from the customer's collection sump into the Batch
Processing Tank. The System computer automatically adds special
chemicals, in sequence, to the Batch Processing Tank while mixing the
batch. The chemistry causes the metals, oil, grease and dirt to form
heavy particles that separate from the clean water. The flocculated
batch is then pumped to the Treated Water Storage Tank where the heavy
particles settle to the bottom and the lighter clean water overflows
from the top of the tank. This clean effluent can be transferred to an
external tank for storage or discharged directly into the sewer system.

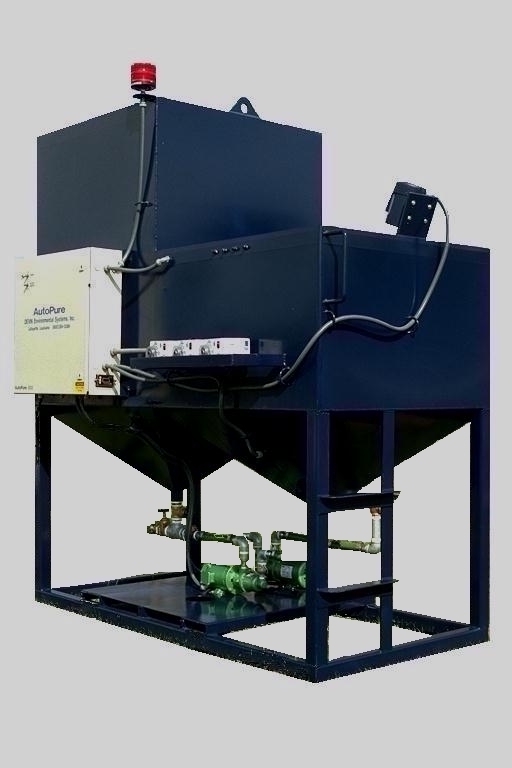

MECHANICAL
The 300DX consists of a single
skid-mounted, multi-compartmented steel tank 8' long, 4' wide and 9'
tall. The vessel has compartments for batch processing and treated water
storage.
OPTIONS
The 300DX can be combined with the 3000R
Reuse Tank to form a Recycle Treatment System.
The Model PF300 Polishing Filter Unit can be
added to the 300DX for removing hydrocarbons that may be residual in the
effluent, if required.
NOTES
The chemical precipitation process
utilized is not designed to accommodate excessive amounts of VOCs.
AutoPure ® can process low concentrations of oil, solvents, hydraulic
fluids, diesel fuels, etc. The optional PF300 Polishing Filter Unit can
be used to reduce these residuals.
It should be noted that some soaps
cause high chemical oxygen demand that is not correctable by the
standard Model 300DX. Acceptable soaps are available and can be
recommended. The optional PF300 Polishing Filter Unit can be used to
reduce chemical oxygen demand.
SERVICES
Devin Systems' staff of professionals
offers you the following services:
- Site evaluation.
- Application filing for city, state and
federal permits.
- Total equipment and service support.
- Ongoing compliance support.
- Systems configured to your requirements.
For more information
contact:
Devin Systems Co.
Houston, Texas
Telephone: 832-545-7161
Web site:
www.devinsystems.net
Email:
autopure@devinsystems.net
To see a typical system flow
diagram, Click Here.
Click on AutoPure ® Model
150DX3 for detail specifications.
<<
